A young man who works in Olive wood carving business brought this LED computer monitor for repair. He said he wants it urgently because he needs to monitor what is going with the carving machine since it was connected to his desk top. I gave him a used one from my shop till I get this one fixed so he was happy with that.

lcd monitor repair

The stand by on this computer monitor was flicking which gave me the indication of a power supply failure.




I was expecting either cold soldering joints, bad capacitors or could be both because I have seen it many times in my field of work.

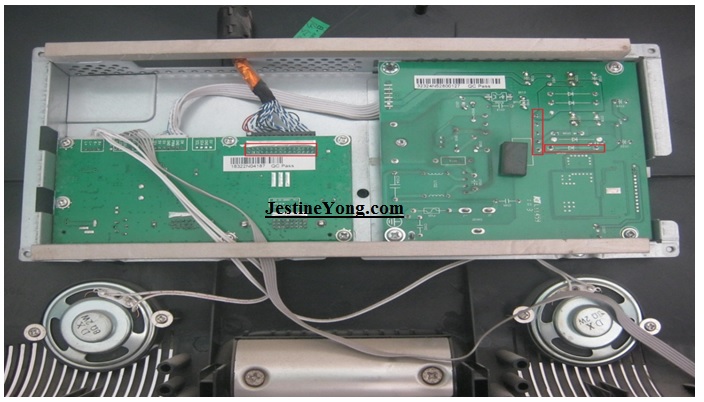

The moment I took the back cover off and checked the main and the power supply, I spotted right away some cold joints. Could it be that easy? Just re solder these bad joints and the screen will work? I guess I was day dreaming because when I re soldered these bad cold joints, the computer screen did not come on.

how to repair lcd monitor

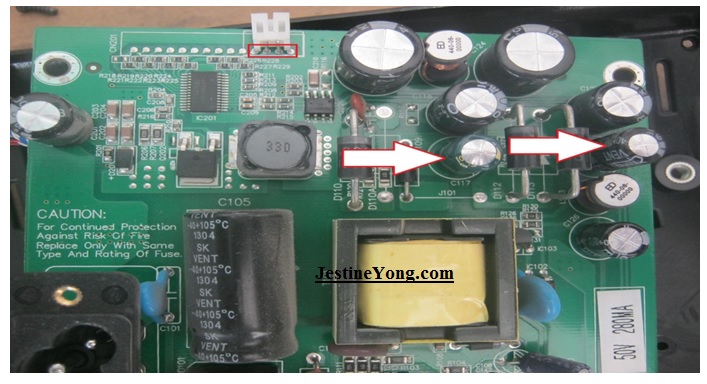

I took the board off and flipped it to the other side when I spotted another problem right away.




Plugged capacitors and they were two of 470uf/25 volts and right away, I replaced them, put everything back together and powered up the computer monitor.

how to fix lcd monitor

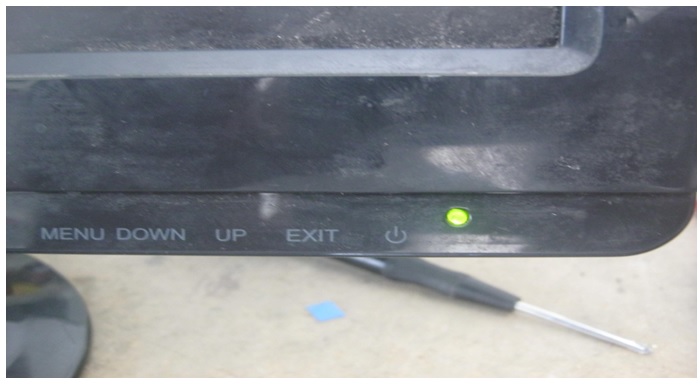

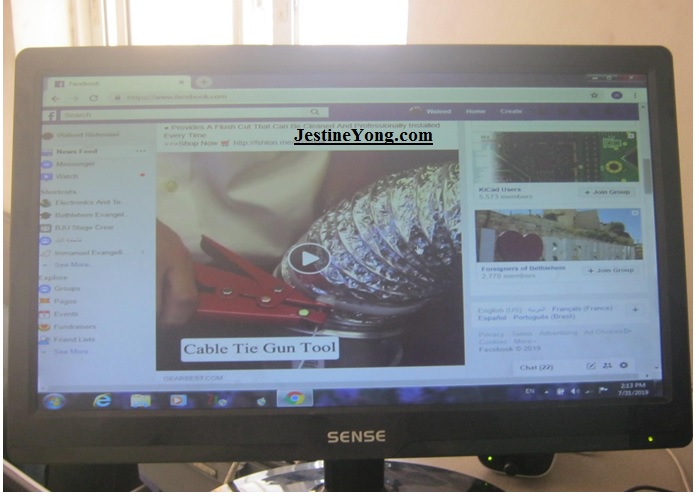

The stand by light was steady this time and the computer monitor was alive again. I connected it to my laptop and tested it for almost an hour and it seems like it was up and running.

how to fix and repair lcd monitor

When I called the customer to come and get his fixed computer monitor. I also reminded him to bring the other computer monitor that he borrowed from me. When the customer showed up to my shop, he did not bring the other monitor with him and in fact, he offered me a price for that monitor plus the repair fees for this one.

We agreed on a price and he also paid the repair fees then he left my shop. To tell you the truth, I was not expecting that at all but I sold a used computer monitor that was sitting in my shop and got the repair fees and I can call that a

Mission accomplished.

waleed

This article was prepared for you by Waleed Rishmawi, one of our ‘Master Authors’ and currently working in the Bethlehem area of Palestine repairing electrical and electronic equipment.




P.S- Do you know of any your friends who would benefit from this content that you are reading now? If so, forward this website to your friends or you can invite your friends to subscribe to my newsletter for free in this Link.

Note: You can check his previous repair articles in the link below:

https://www.electronicsrepairfaq.com/medical-device-power-supply-repaired-model-up30431





About

Jestine Yong works as an Electronics Repair Lecturer in Kuala Lumpur Malaysia and his training website is http://www.NoahtechElectronicsTraining.com. You can check out his repair blog at http://www.JestineYong.com

12 comments on “Flashing Stand By Light On A LED Computer Monitor Repaired. Model Senso M2289c

  1. Mark says:

    Well done Waleed!

    1. Waleed Rishmawi says:

      Mark: thanks man. by the way, Mark is the name of my son. have a blessed day

  2. Albert van Bemmelen says:

    Mission accomplished of course, but only as long as you do not need another monitor or still have one for future repairs. As having none can be a problem when investigating defect computers and so on. The fact that the customer didn’t bring yours back as he should have left you a poor choice!

    1. Waleed Rishmawi says:

      Albert: I have plenty of computer monitors in the shop. I usually fix them and sometimes I buy them from customers and end up selling them for good profit. good business. have a blessed day

  3. Parasuraman Subramanian says:

    Excellent job! I like the way you put your experience across! Many thanks for sharing!

  4. JTLiuzza says:

    Thanks Mr. Waleed. I always enjoy your articles.

    1. Waleed Rishmawi says:

      JTLiuzza: you are most welcome and I am glad you are enjoying my articles. have a blessed day

  5. Imoudu Onwumah says:

    Good work,but you did not tell us what was wrong with those caps.

    1. Waleed Rishmawi says:

      Imoudu: thanks. the caps were plugged. if you look to the top of capacitor in the photo, they are not flat and that is one of the signs of bad capacitors. have a blessed day

  6. paul says:

    thanks sir for your great knowledge

  7. Mohanraj says:

    Thankyou sir to share your experience…….

  8. Gregory Reese says:

    Hello My Name Is Greg
    I have a 6inch philip
    And I can get to display
    The philip flashes on the screen
    And the there’s no pic it want display
    Any pic.I turn it off and turn it back
    On it displays philips and go back dark
