An old man who lives nearby my shop brought this satellite receiver for repair. Topfield is a good satellite receivers and usually the main cause of them going bad usually capacitors.




The main problem would be, are they bulged and very easy to see find or we have to check them one by one? Let us find out.

satellite receiver repair

The first thing I noticed after I powered up the device is the ticking noise that was coming out of it which confirmed my experienced guess.

fix satellite repair

As I took the top off and exposed what inside, I headed directly to the power supply and started doing measurements.

how to repair satellite receiver

It was very clear to me that it will take longer than expected to repair this device since I do not see any bulged capacitors. Let the fun begin.

how to fix satellite receiver

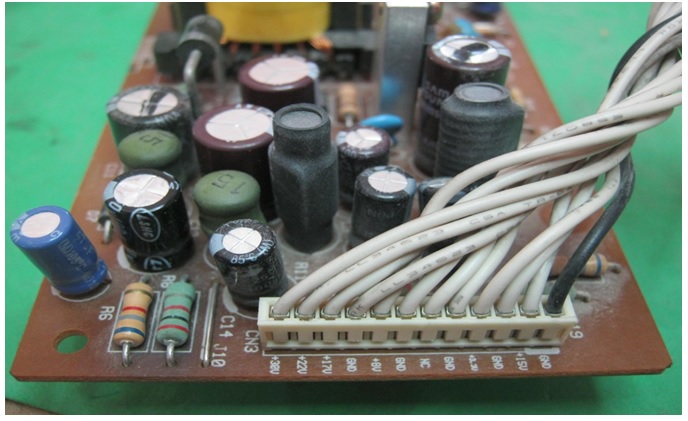

There is a way to check the capacitors other than using the ESR meter and that to follow the bad line. For example, you can see measurement printed on board.




That is my clue to bad capacitors. The first reading was 38 volts. When measuring that with my multimeter, I got 45 volts which is way too high for that line. I traced all the capacitors in there and replaced them. I powered the device and guess what? The device came on for about two minutes then it started shutting on and off. I was getting close. So I tested the next line which was 22 volts and the reading there was 35. Again, that was too high so I traced that line and replaced all the capacitors there.

how to fix and repair satellite receiver

This view is from the other side of the board and you can see the traced that I followed in this repair.

bad capacitors

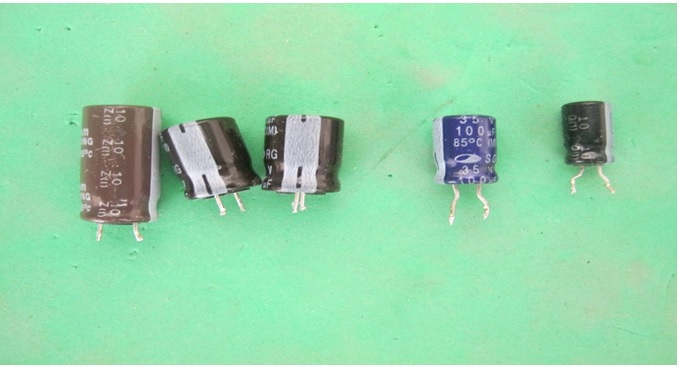

Here are the bad capacitors that I found in the device.

1000uf/16 volts

220uf/35 volts x 2

47uf/50 volts

100uf/35

servicing satellite receiver

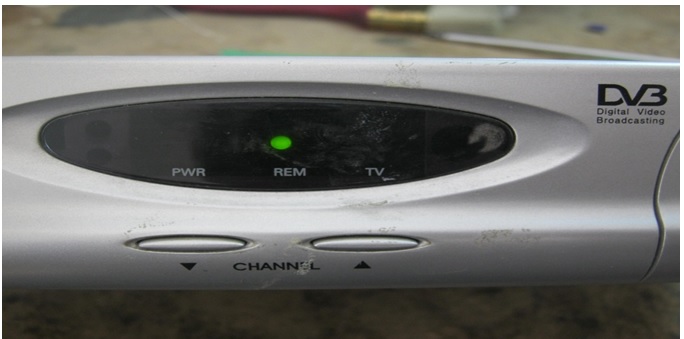

As you can see, this method worked out fine. This is the first time that I used this method of repair. It really worked. In other words, fix the line that need fixing and do not mess with the things that are ok. A repair technician and my friend suggested this method of repair. You as technician might not follow this way of repair, that is understandable but you can use any way that fits the need.

fluke 112 meter

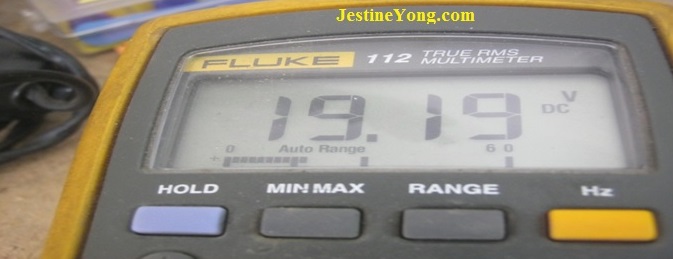

This was the final reading on the output of the LNB connection.

Mission accomplished.
