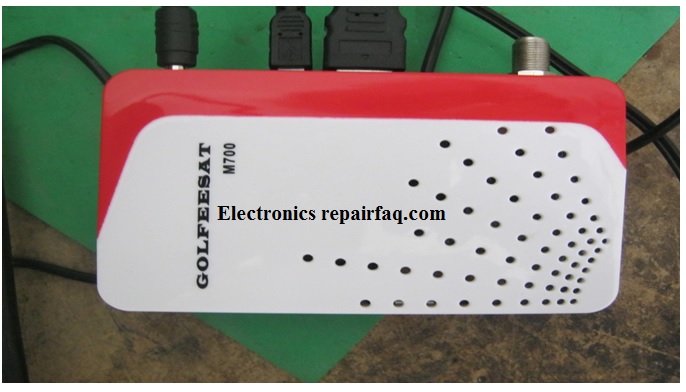

Satellite Receiver Golfeesat M 700 Repair
An old man walked into my shop and asked me if I can repair his satellite receiver. It is a very cheap receiver and the man said that it does not power up.
It was a Chinese made receiver and to be honest, I hesitated to repair it for him because it was not worth the repair. I tested the external power supply, it checked fine. It operates on 12 volts DC.
I powered up the device and the display did not come on. Two screws in the back were off and I could see inside the receiver.
It was looking good on this side. No bulged capacitor no burnt marks. I checked the fuse and it was fine. I looked on the other side of the board and it was fine. Nothing was wrong there.
I powered and I checked the voltages going to the main capacitor and it was ok except the voltage was not steady. I re soldered the power jack on the machine and the power became steady but the device was not coming on.
I decided to give it a shot and just re soldering all the joints on the back of the board and see what happens. Most of the joints looked good but while at it, I re soldered even the good joints. To my surprise:

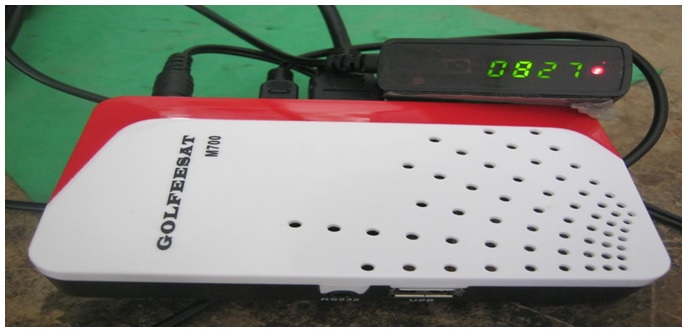

It powered on. I worked on it for ten minutes and re soldering made the difference. I called the customer and told him the good news. The look on his face made my day. Mission accomplished.
This article was prepared for you by Waleed Rishmawi, one of our ‘Master Authors’ and currently working in the Bethlehem area of Palestine repairing electrical and electronic equipment.
P.S- Do you know of any your friends who would benefit from this content that you are reading now? If so, forward this website to your friends or you can invite your friends to subscribe to my newsletter for free in this Link.
Note: You can check his previous repair articles in the link below:
