no power in philips dvd player

The complaint of this Philips DVD player was no power and the first thing to do after confirmed that it was indeed faulty was to open the cover. Once the cover was removed I could see three circuit boards.

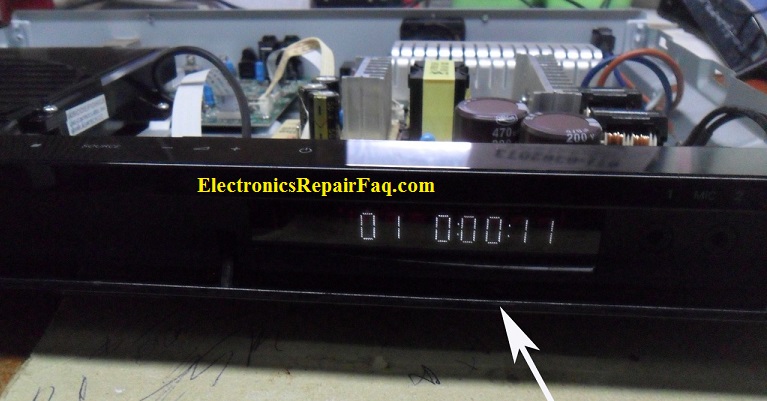

It was the power supply board, Mainboard and the Main Amplifier board. It also has the CD tray and the laser assembly-see the photo below:

how to fix no power in dvd player

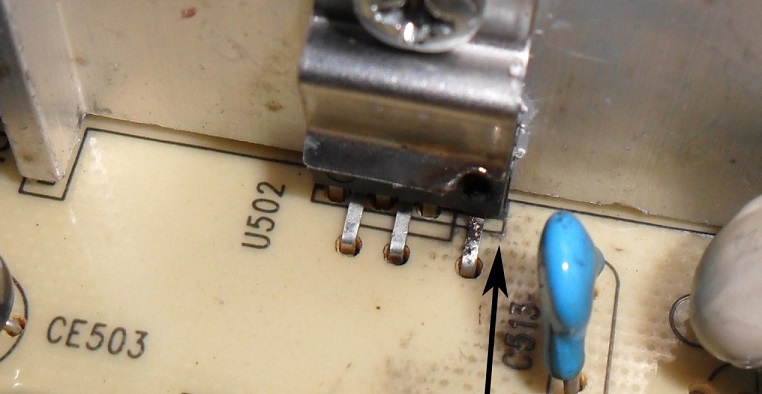

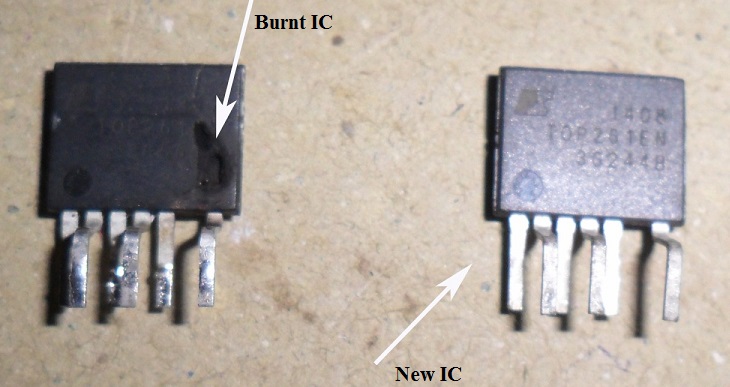

Since the complaint was no power the first component to check was the main fuse and it was found to be open circuit. This indicated something had shorted. Upon careful visual inspection, I found the power IC with the part number of TOP261EN was burnt-see the photo below:

how to repair no power in dvd player

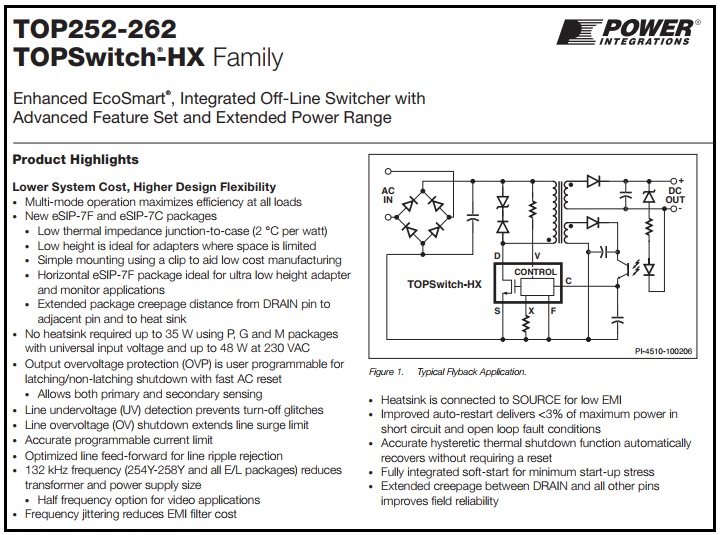

I have the same power IC in my compartment and you can click on the TOP 261EN IC Datasheet below for  more technical information.

TOP 261EN ic

top261en ic datasheet

I checked further in the power board to see if there is any more bad component but found none. If you want to learn how to check electronic components you can click HERE for more info.

fix dvd player

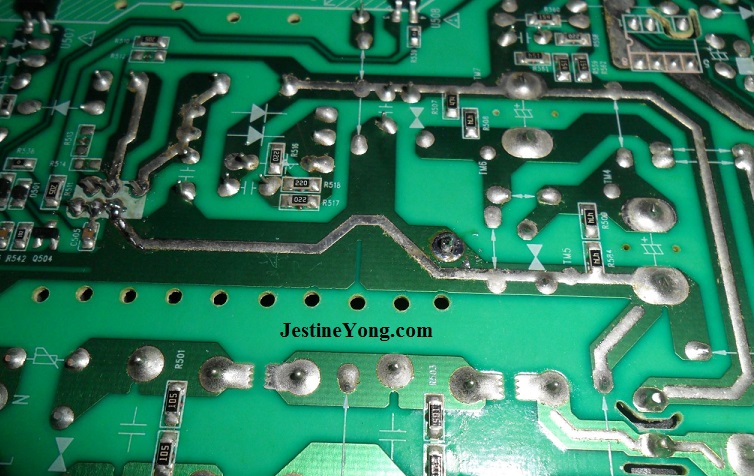

After that I used the light bulb method to check and make sure no more shorted component. It turned out to be fine.

how to fix and repair philips dvd player

Since the bulb did not light, so I put in the main fuse and powered the DVD player and it worked beautifully.

philips dvd player repair



This article was prepared for you by Suranga Bandara who owns an Electronics repair shop in Anuradapura, Sri Lanka.
